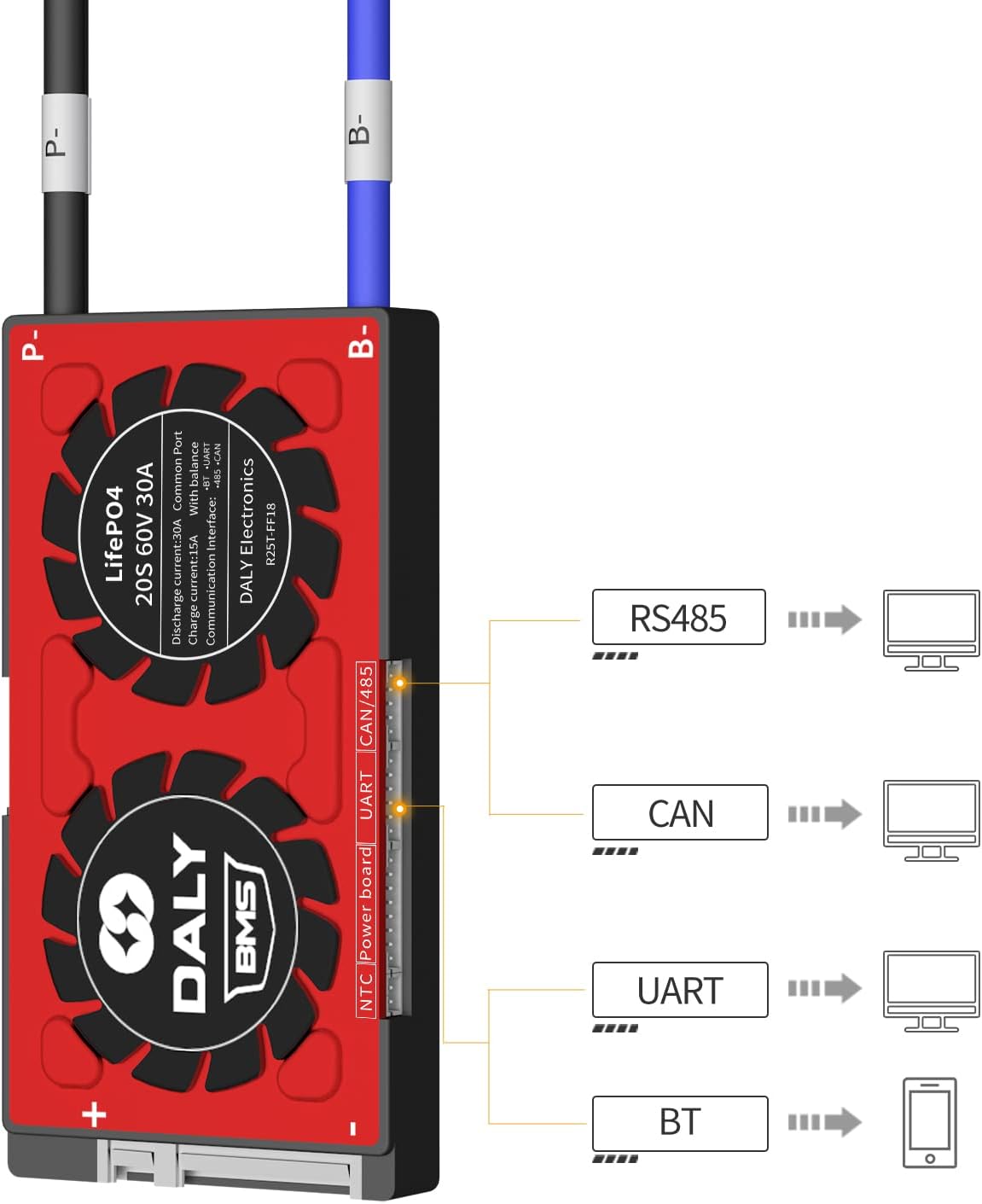

DALY Smart BMS LiFePo4 20S 60V 30A PCB Battery Management System with UART Communication CAN 485 Bluetooth Battery Monitoring Module for 18650 Battery Pack

This is DALY smart bms Rated 3.2V with smart communication function (CAN) Battery pack strings must be matched with BMS strings. DALY BMS Adopt top quality (A-level) IC Solution make battery management much more efficient , greatly help to keep battery pack healthy and stable. Extending battery life-span, improve performance. DALY BMS being waterproof test, humidity resistance . DALY BMS can be applied with home power storage system , RV Power supply , E-bike and other lithium battery related device . Factory Default Setting Over Charge detect voltage: 3.75±0.05 Over Charge release voltage: 3.65±0.05 Over Charge protection delay 1s Balance detect Voltage: 3.2V Balance Current: 35±5 mA Over discharge voltage detect :2.2±0.1 V(The over-discharge protection voltage can be reset in certain range by bluetooth app if you need it) Over Discharge Detect delay 1s Over discharge voltage release voltage: 2.3±0.1 V BMS Self-Consumption Working Current :≤20 ma

• [DALY BMS]Overcurrent,Overcharge,Overdischarge,Short circuit, Temperature protection.DALY BMS maximizes optimizes the lithium battery performance, and extends the battery lifetime to a large extent.
• [Double Protection]Double protection by injection patent technology and patent shell.Waterproof,dustproof,shockproof and anti-static;High-quality components, pressure-resistant and durable material, high acquisition accuracy.Easy to install.

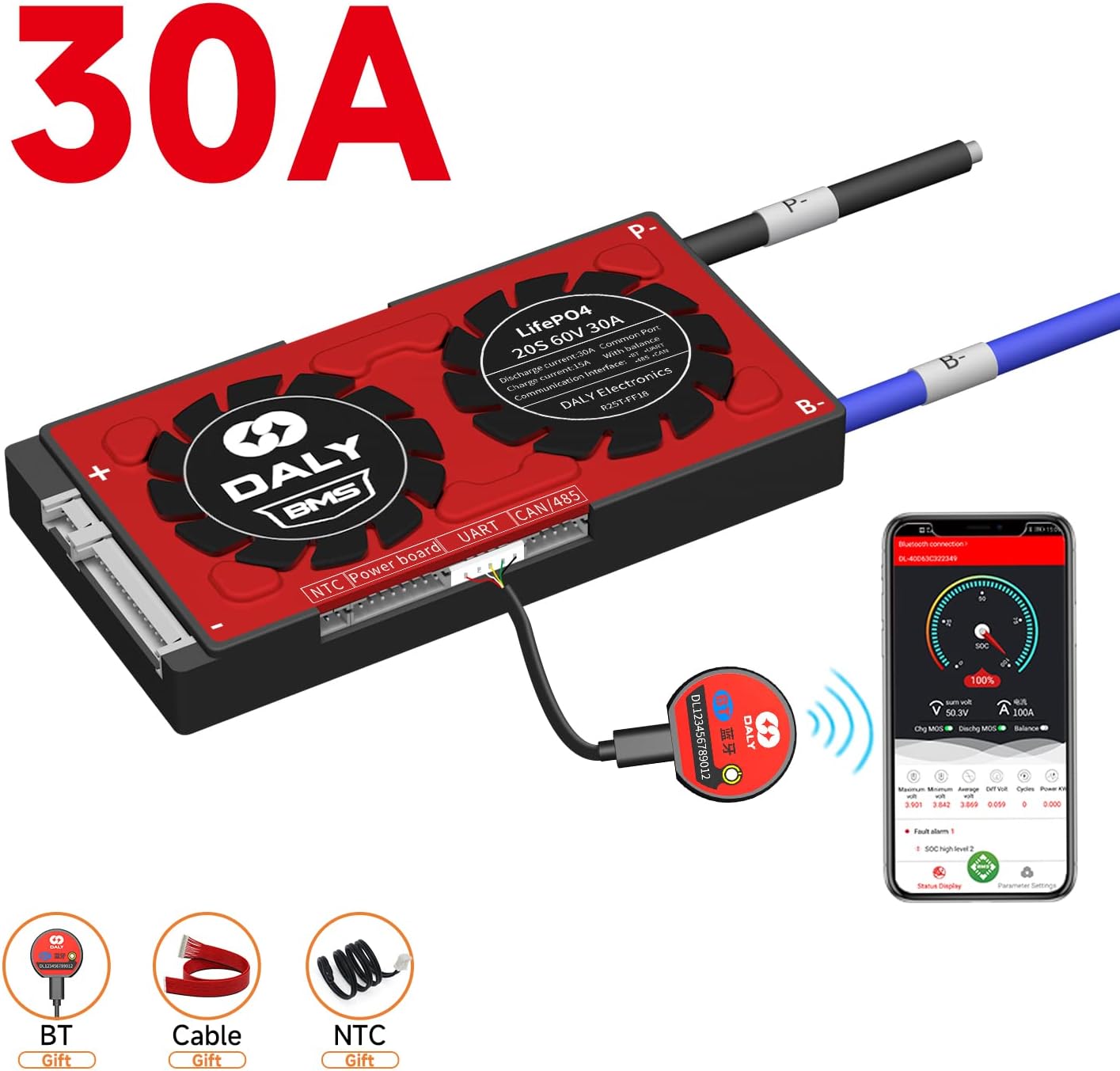

• [Smart BMS]Check battery status and modify parameters at any time through Bluetooth app or PC Software.Quality Guarantee--- ISO/ FCC/ RoHS/ PSE/ CE APPROVED
• [Note] If you need active balancer, parallel module or other accessories, please contact online customer service.We offer 24-hour one-on-one customer service and lifetime technical support.
• [Packing List]3.2V Lifepo4 BMS*1,Bluetooth Module*1,NTC sensor*1,Sampling cable*1,Uart cable*1,Instruction Manual*1.
